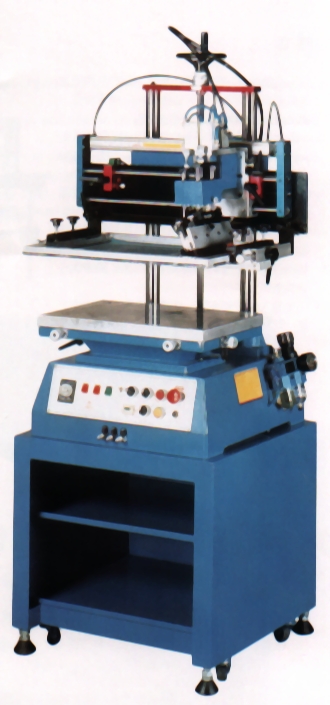

MT - 400A/500A

Features :
1) The squeegee printing system utilizes an imported linear bearing guide for extremely stable printing.
2) Sensor is provided for controlling the printing stroke, which can be laterally adjusted to suit various screen sizes.
3) New pneumatically operated printing head lifting design provides convenient replacement of squeegee, flood bar and screen, as well as easy access for cleaning. The device is interlocked with an emergency stop to ensure the safety of the workpiece, screen and operator.
4) The printing table is radially designed to provide powerful suction with easy control.
5) The flood bar can pre-coat ink or coat during printing, minimizing screen clogging.
6) The printing table is equipped with 3 sets of micrometric adjustment knobs for prectision alignment of printing in lengthwise, lateral, and angular directions.
7) Pneumatically driven, low-noise levels, low pollution and trouble free performance.
8) The workpiece is vertically positioned to prevent ink overflow from the side, therefore lowering ink consumption.

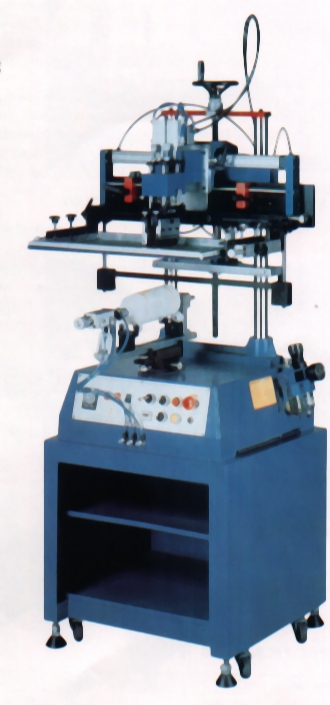

MT - 400B/500B

Features :
1) The squeegee printing system utilizes an imported linear bearing guide for extremely stable printing.
2) Sensor is provided for controlling the printing stroke, which can be laterally adjusted to suit various screen sizes.
3) Precise multi-color printing through synchronized transmission of gear and rack with the use of proper workpiece holder, original patterns are accurately reproduced.
4) The substrate holder may be adjusted to meet substrate variation, and micrometric adjusted in forward right/left, tilting direction, for accurate squeegee positioning.
5) The screen is vertically positioned to prevent ink overflow from the side, therefore lowering ink consumption.
6) Superior shock absorbing system provides precise and stable operations for multi-color printing.
7) Printing stroke can be adjusted laterally to suit various screen sizes.
8) Engineering design delivers convenient loading and unloading of workpiece with a significant reduction in effort.

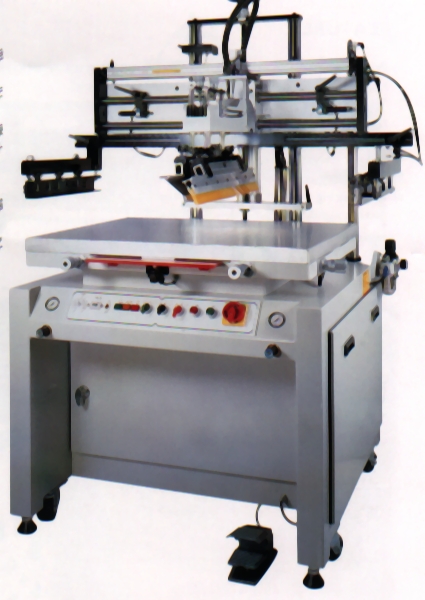

MT - 750A/1000A

Features :
1) The squeegee printing system utilizes an imported linear bearing guide for extremely stable printing.
2) Sensor is provided for controlling the printing stroke, which can be laterally adjusted to suit various screen sizes.
3) New pneumatically operated printing head lifting design provides convenient replacement of squeegee, flood bar and screen, as well as easy access for cleaning. The device is interlocked with an emergency stop to ensure the safety of the workpiece, screen and operator.
4) The printing table is radially designed to provide powerful suction with easy control.
5) The flood bar can pre-coat ink or coat during printing, minimizing screen clogging.
6) The printing table is equipped with 3 sets of micrometric adjustment knobs for prectision alignment of printing in lengthwise, lateral, and angular directions.
7)Pneumatically driven, low-noise levels, low pollution and trouble free performance.
8)The workpiece is vertically positioned to prevent ink overflow from the side, therefore lowering ink consumption.
9)With pneumatic-powered hydraulic peel-off system, screen peeling speed and position are adjustable to avoid sticking. Also, it is ideal for large format and dot pattern printing.
10)The printing mechanism elevation is air operated for convenient despatch of squeegee, flood bar, and screen. Also convenient for ink cleaning.

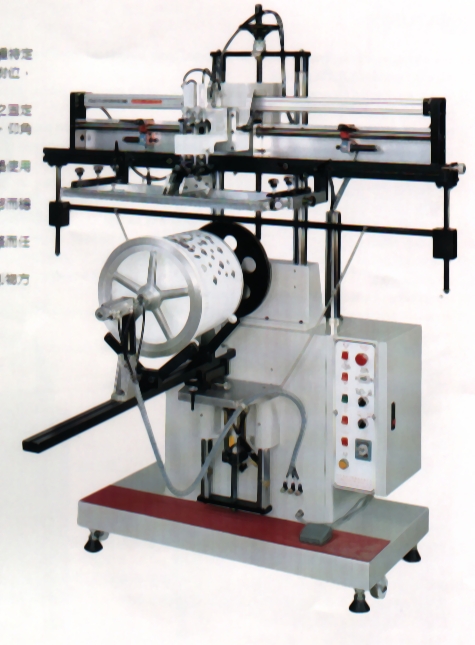

MT - 900B/1100B

Features :
1) Precise multi-color printing through synchronized transmission of gear and rack with the use of proper workpiece holder, original patterns are accurately reproduced.
2) The substrate holder may be adjusted to meet substrate variation, and micrometric adjusted in forward right/left, tilting direction, for accurate squeegee positioning.
3) The workpiece is vertically positioned to prevent ink overflow from the side, therefore lowering ink consumption.
4) Superior shock absorbing system provides precise and stable operations for multi-color printing.
5) Printing stroke can be adjusted laterally to suit various screen sizes.
6) Engineering design delivers convenient loading and unloading of workpiece with a significant reduction in effort.

MT - 35B

Features :
1) This aluminum table is excellent for small, precision multi-color printing operations.
2) The printing table can be adjusted both forward or backward and to the left or right up to 20mm to provide printing accuracy.
3) The table can be vertically adjusted up to 100mm to accommodate workpiece thicknesses.

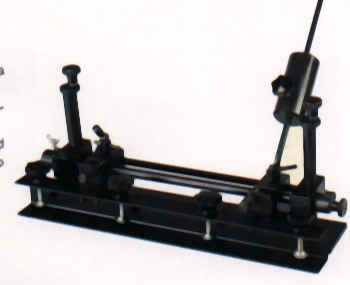

MT - 50A/30A

Features :
1) This stand is excellent for precision printing on both a large and small scale.
2) The unit can be vertically adjusted up to 100mm to accommodate workpiece thicknesses.
3) The level can be micrometrically adjusted both forward or backward and to the right or left up to 20mm to facilitate multi-color printing.
4) Clamp capacity MT/50A: 500mm. MT/30A: 300mm.

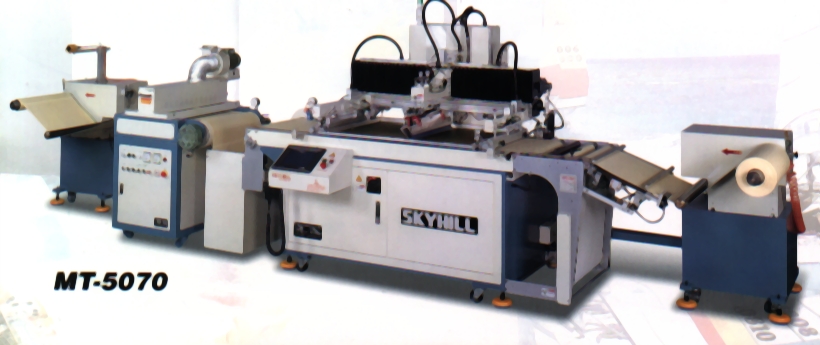

MT - 5070

Features :
1) User-friendly PC based control combined with touch screen monitor for maximum operation convenience.
2) Longitudinal and latitudinal lines are driven by servo and stepping motor, automatically controlled and compensated by the computer to ensure automatic printing position.
3) The printing head is raised vertically for convenient access to screen and squeegee.
4) Vacuum suction table for efficient workpiece fixing, with blow back function.
5) The squeegee mechanism has a pressure stabilizer ensuring constant pressure at all times.
6) Automatic tension control.
7) Aluminum alloy machine frame ensures high stability and no deformation.
8) Photocell sensor detection around the machine provides extra safety for the operator and machine.
9) Winding and unwinding are through air shaft to prevent slippage, and includes advanced web guide for precision and neatness.
10) The take up roller features vacuum suction, ensuring smooth film surface and proper film tension at all times.
11) Winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
12) Precision linear motion guides are provided on vertical and horizontal slideways for extremely smooth and stable traverse.
13) The winder is equipped with an ultra sonic sensor. When the film roll diameter increases to some degree, winding speed will slow down automatically to ensure a smooth edge of film roll.
14) Two types of drying device available: contact tower dryer and UV curing machine. ( Optional )
15) Punching device. ( Optional )
16) Safety guard with CE standard. ( Optional )

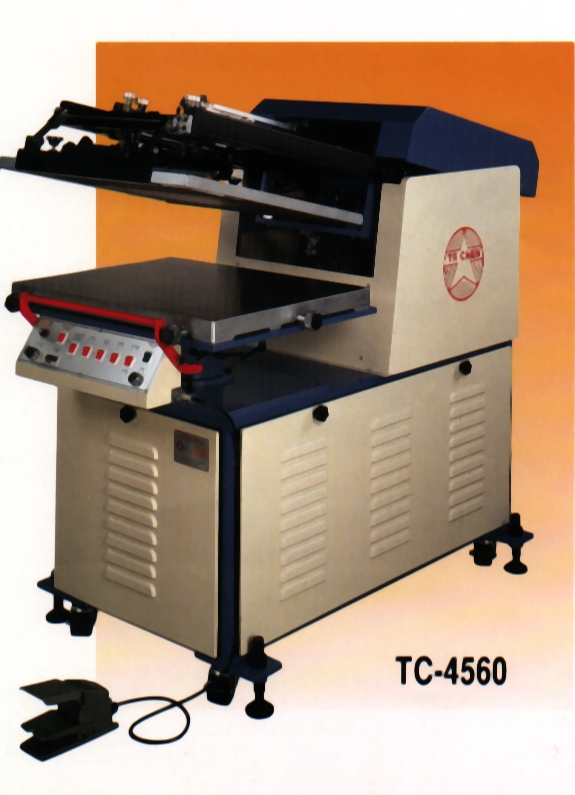

TC - 4560

Features :
1) Movable screen frame construction-easy set-up and take-out, easy adding ink and cleaning screen.
2) The printing table of stainless steel can be moved forward/backward, left/right with micro-adjusting guage, to assures the finest registration.
3) Various printing stokes is adjustable, only changes the length of the driving link of the squeegee to match the printing size of article.
4) The screw bolt with registration guage can be turned to match the thickness of article.
5) Security device installed in the front of the printing table, it forces the screen back to its position in an emergency.
6) Two selections on operation:
    a. Periodically automatic operation-continuation printing in 0 to 10 sec.
    b. Manual operation-by push the button with hand or by foot-step switch with foot.

TC - 6080

Features :
1) 1) Movable screen frame construction-easy set-up and take-out, easy adding ink and cleaning screen.
2) The printing table of stainless steel can be moved forward/backward, left/right with micro-adjusting guage, to assures the finest registration.
3) Various printing stokes is adjustable, only changes the length of the driving link of the squeegee to match the printing size of article.
4) The screw bolt with registration guage can be turned to match the thickness of article.
5) Security device installed in the front of the printing table, it forces the screen back to its position in an emergency.
6) Two selections on operation:
    a. Periodically automatic operation-continuation printing in 0 to 10 sec.
    b. Manual operation-by push the button with hand or by foot-step switch with foot.
7) To use air pressure control system, so that it is easy to change scraper and squeegee, and assures the skillful and stable run.
8) Equipped with air type off-contact device to promote perfect print quality.

LC - 600FBD

MT - 406T

Features :
1. Eliminating conventional boards of wood or aluminum, this unit employs a specially designed bakelite shirt board to fully overcome warp problems.
2. The adoption of an air cylinder, instead of a spring, ensures smooth operations.
3. Use in conjunction with a flash drier to greatly increase the impression of the printing image.
4. Manually operated.
5. Four or six-color screens are continuously driven and accurately positioned by a rotary disk.
6. One operator can print continuously up to 4 substrates on one machine.
7. Screen can be micrometrically adjusted both quickly and accurately for efficient printing.
8. The units are excellent for printing knitting, textile garments and piece goods.

MT - 304T

Features :
This Heat - Transfer & Fusing Press can be widely used for the application of transfers and decals on to garments including cowboy suits, children's suits, swim suits, sports suits, jackets, T-shirts and knitted and woven garments. Simply press the pattern with the iron, which has a temperature range from 120 C - 180 C, for about 15 - 30 seconds and remove the pattern backing as soon as it is cool.

TC - 5070A

Printing Area : 500 x 700 m/m, 600 x 800 m/m .
